Unveiling The Inner Workings Of A Car Radiator: Exploring Components And Their Functions

Introduction:

Within your car's cooling system, radiators play a crucial role. They effectively dissipate excessive heat generated by the engine, ensuring it operates within a safe temperature range. Have you ever pondered over what lies behind a car radiator? In this comprehensive article, we will delve deep into the fundamental elements that collaboratively work behind the scenes, keeping your engine cool and preventing overheating.

The Multifaceted Components:

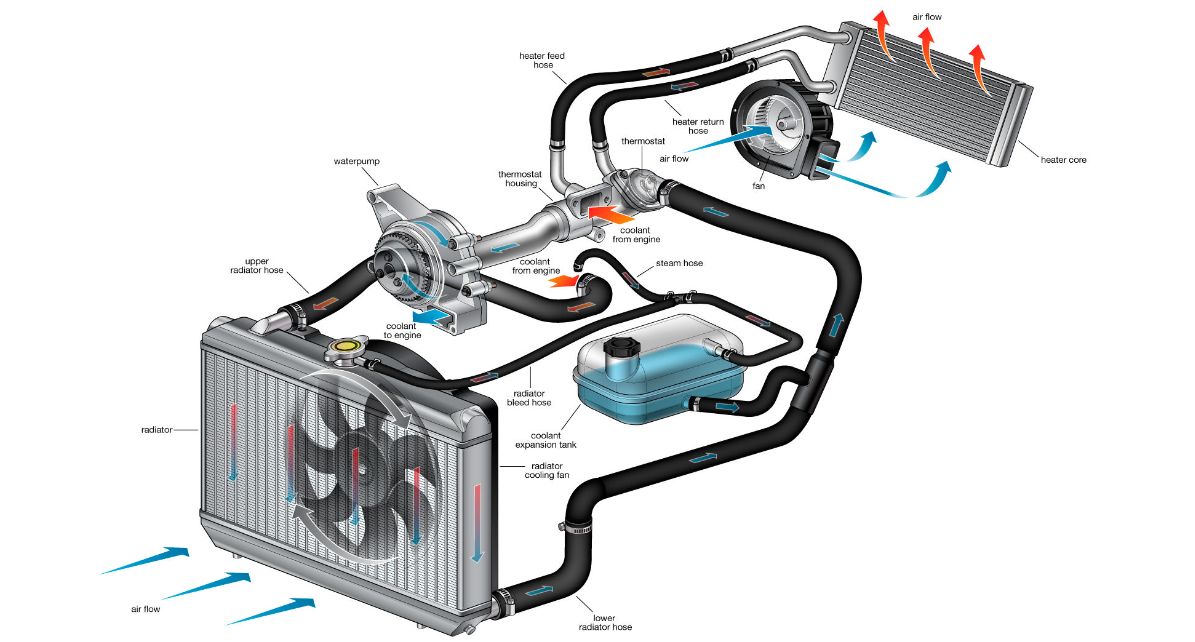

In addition to the car radiator, numerous components assume significant roles in the car's cooling system. Let's explore the distribution and functions of these essential components:

Car Radiator:

Typically positioned at the front of the engine, near the vehicle's air intake, car radiators play a pivotal role in the entire cooling system. They perform the following crucial functions:

Heat Dissipation and Cooling:

During the engine's operation, a substantial amount of heat is generated. The radiator circulates coolant through pipes and fins, effectively transferring the absorbed heat to the surrounding air. This process allows the radiator to efficiently dissipate the engine's excess heat, reducing its temperature and maintaining it within a safe range.

Temperature Control:

By regulating the flow of coolant and optimizing heat dissipation efficiency, radiators help maintain the engine within the appropriate operating temperature range. A stable engine temperature is vital for maximizing engine performance and ensuring long-term reliability.

Prevention of Overheating:

The radiator serves as a crucial safeguard against engine overheating. Elevated temperatures can lead to engine failure, damaged seals, coolant boiling, or loss of radiator fluid. By promptly cooling down the engine, the radiator shields it from potential damage caused by overheating.

Fuel Efficiency:

The functionality of your radiator directly influences your car's fuel efficiency. By effectively cooling the engine, radiators enhance fuel combustion efficiency, reduce fuel consumption, and improve overall fuel economy.

Coolant:

Coolant is a specialized liquid employed in a car's cooling system. It maintains the engine within the optimal temperature range by performing functions such as heat absorption, cooling, antifreeze protection, anti-corrosion, and leak detection. The circulating flow of coolant effectively reduces the engine's temperature and prevents overheating. Ensuring you select the appropriate coolant and regularly checking and changing it is crucial for your car's well-being.

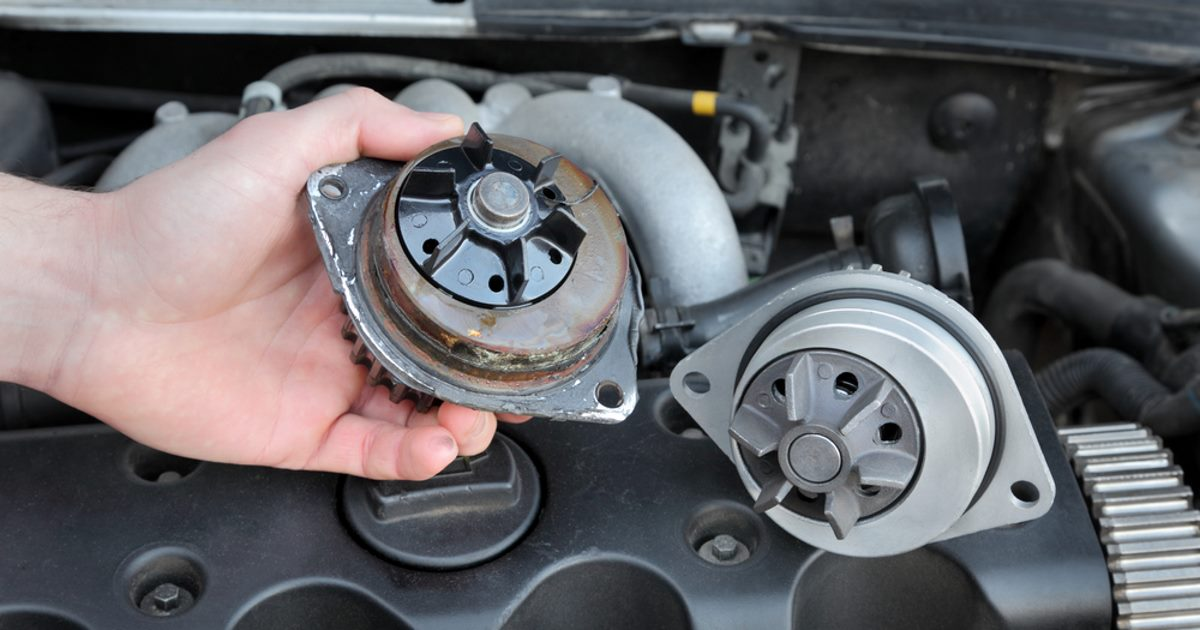

Water Pump:

Automotive water pumps play a vital role in the cooling system, responsible for circulating coolant. They pump coolant out of the radiator, absorb heat from the engine, and subsequently send it back to the radiator for the cooling cycle. By generating centrifugal force through the rotation of the impeller, water pumps propel the flow of coolant. Their normal operation ensures the fluidity of coolant, effectively reducing the engine's temperature and maintaining it within the suitable operating range. Regular inspection and maintenance of the water pump are of utmost importance to ensure the efficiency of the cooling system and the engine's optimal performance.

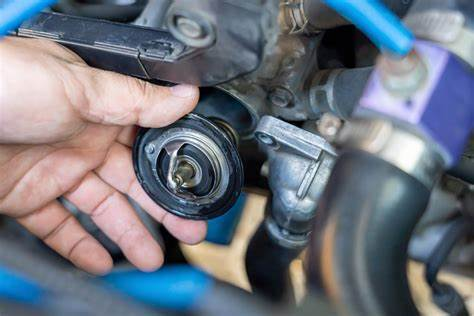

Thermostat:

The car thermostat stands as a key component within the cooling system, controlling the coolant flow to maintain the engine within a consistent operating temperature range. Typically installed at the engine water intake, the thermostat regulates the engine's temperature by managing the coolant flow. When the coolant temperature falls below the set level, the thermostat stops the return flow of coolant, allowing it to circulate through the engine. Once the coolant temperature rises to the set level, the thermostat opens the return channel, enabling the coolant to flow back to the radiator for cooling. By adjusting the thermostat, the engine operates stably within the appropriate temperature range, enhancing combustion efficiency and prolonging the lifespan of mechanical parts. Therefore, regular maintenance and replacement of the thermostat are vital to ensure the cooling system's proper functioning.

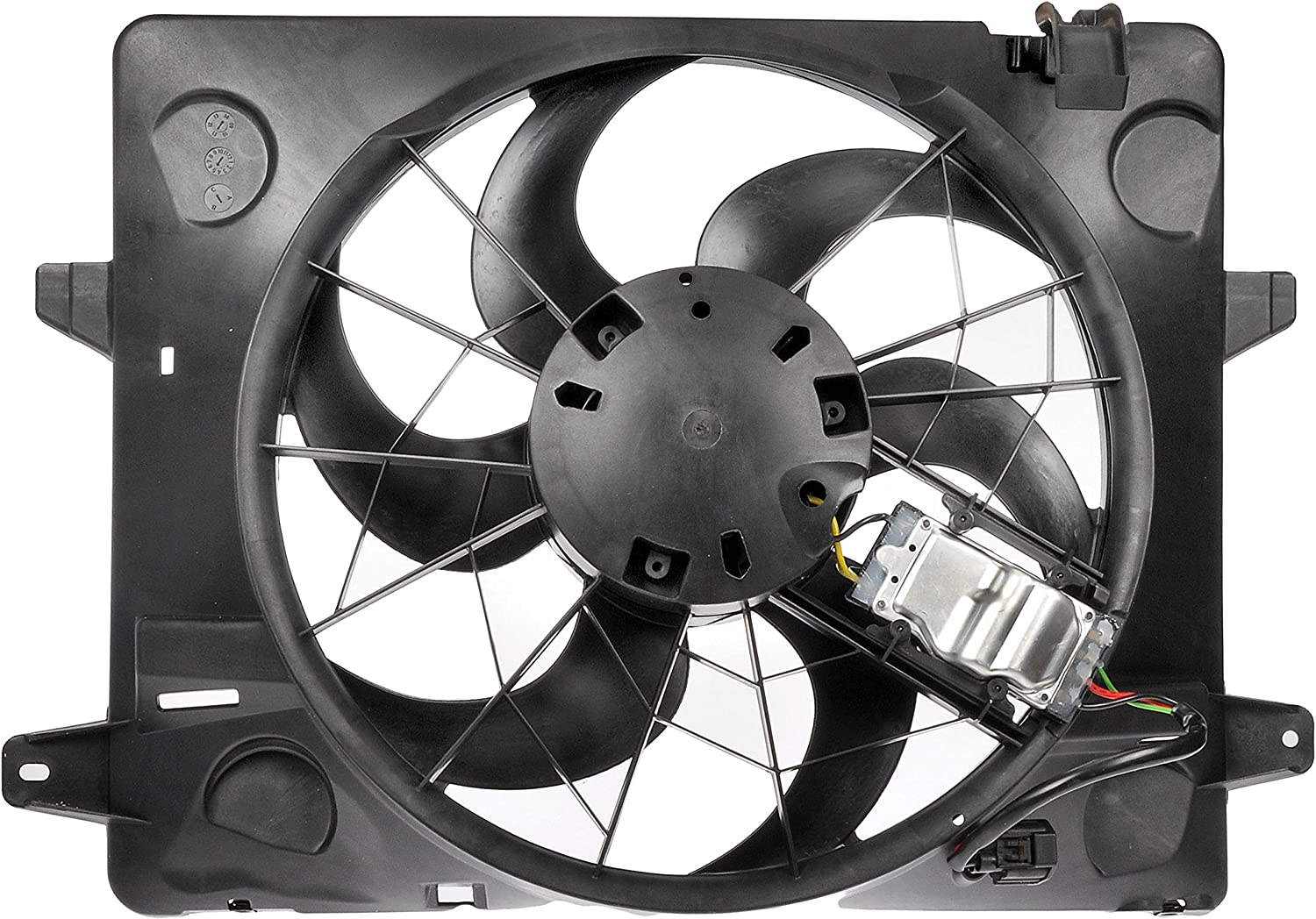

Fan:

Fans represent another critical component of the cooling system, primarily responsible for increasing air flow, aiding the radiator in heat dissipation, and maintaining the engine's optimal operating temperature. Positioned behind the radiator, fans generate airflow by rotating their blades, directing air across the radiator's surface and facilitating the transfer and dissipation of heat. When the engine temperature rises, the temperature sensor triggers the fan, enhancing heat dissipation efficiency. There are two types of fans: mechanical fans, powered by the engine, and electric fans, driven by an electric motor. Electric fans offer greater flexibility and controllability, adjusting the airflow automatically based on the engine temperature and operating conditions. Regularly inspecting and maintaining the fans is crucial to ensure the cooling system's effectiveness.

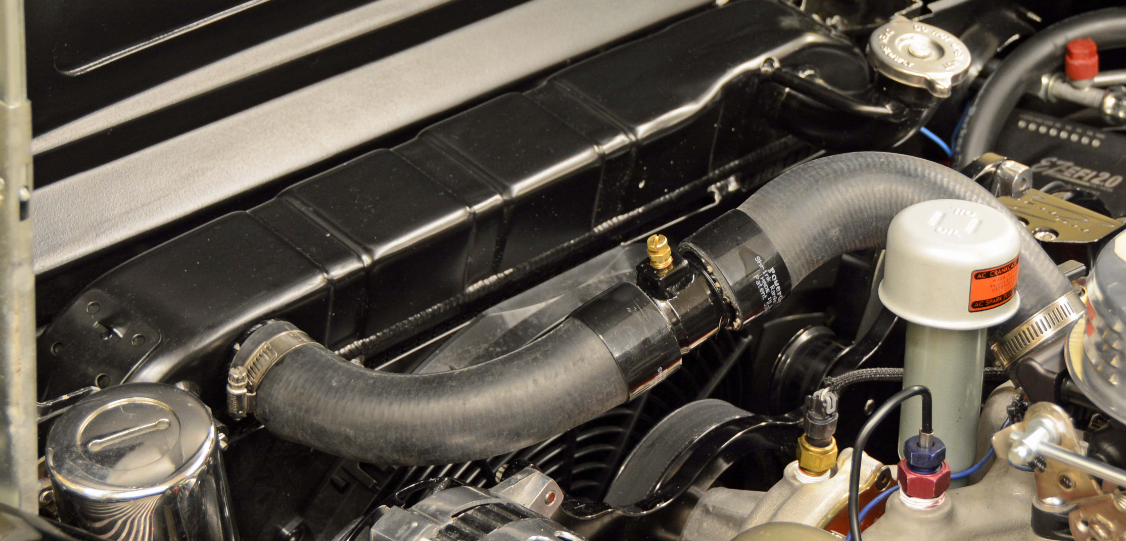

Radiator Hose:

Radiator hoses serve as connectors between the radiator, engine, and water pump, facilitating the smooth flow and circulation of coolant. Constructed from durable, high-temperature-resistant rubber material, radiator hoses exhibit excellent corrosion resistance and sealing performance. They withstand the flow pressure and temperature changes of the coolant, efficiently transferring it from the radiator to the engine to reduce its temperature. Over time, prolonged usage and environmental factors may cause wear, aging, or the development of cracks in radiator hoses, potentially leading to coolant leakage. Hence, regular inspection and timely replacement of radiator hoses are essential measures to maintain the cooling system's normal operation and prevent failures.

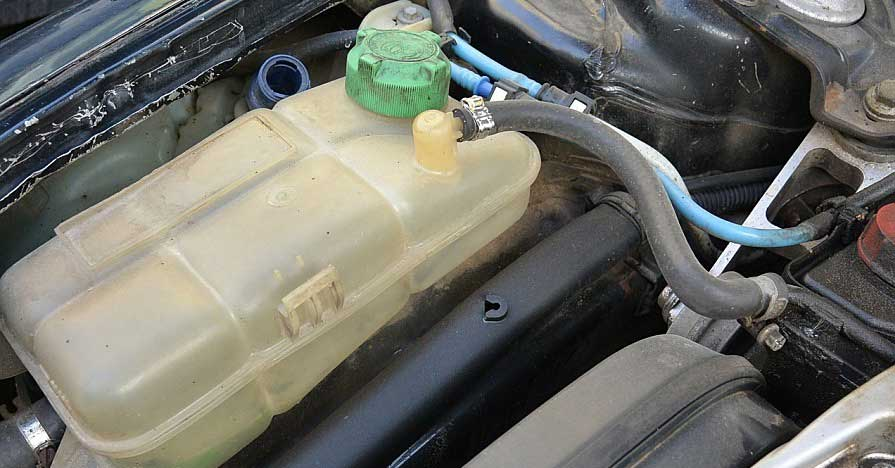

Expansion Tank:

Also known as an overflow tank or coolant reservoir, the expansion tank connects to the radiator and is usually located at a high point in the cooling system. Its primary function is to accommodate the expansion and contraction of coolant, maintaining stable pressure and normal operation within the cooling system.

During engine operation, the coolant heats up and expands, increasing its volume. The expansion tank prevents the cooling system from experiencing abnormal pressure levels by accommodating this expansion. Additionally, when the engine cools down, the coolant shrinks, and the expansion tank receives the excess coolant, preventing the formation of a vacuum within the cooling system.

Typically made from transparent plastic materials, expansion tanks allow car owners to monitor the cooling system's status by observing the coolant level. Low coolant levels may indicate a leak or another issue requiring servicing or coolant replenishment.

Ensuring the proper functioning of the expansion tank is critical for the cooling system's efficiency and engine protection. Regularly checking the coolant level and appearance of the expansion tank, as well as promptly addressing any leaks, are vital steps in maintaining the cooling system's health.

Heater Core:

The heater core assumes a vital role within the car's heater system, often referred to as the heart of the car's heating mechanism. Positioned inside the vehicle, typically behind the dashboard or beneath the seat, the heater core primarily functions to heat the air entering the car, providing a comfortable and warm air supply.

The heater core consists of a series of small tubes and fins through which the coolant flows, heated by the engine's heat. When the vehicle is started, and the heater is activated, the coolant flows through the heater core's pipes, transferring heat to the core's fins. The incoming air passes through the heater core, interacting with the hot fins and getting heated. The heated air then circulates inside the car through the air outlets, ensuring a warm interior.

Proper functionality of the heater core is crucial for maintaining a comfortable driving environment, especially during cold seasons or when driving in chilly weather. Failure or blockage of the heater core can lead to inadequate heat supply or malfunctioning of the heating system. Therefore, regular inspection and maintenance to ensure the cleanliness and smooth operation of the heater core, allowing normal coolant circulation and optimal heating effectare essential to keep the car's interior warm and comfortable.

In Conclusion:

Understanding the components behind a car radiator is vital for comprehending the workings of a cooling system. From the radiator itself to the coolant, water pump, thermostat, fan, radiator hoses, expansion tank, and heater core, each component plays a specific role in maintaining the engine's optimal temperature. Working harmoniously, these components ensure efficient cooling, prevent overheating, and contribute to the smooth operation of your vehicle.

FAQ

Q1: How frequently should I check my car's coolant level?

A: It is recommended to check your car's coolant level at least once a month or before embarking on a long trip.

Q2: Can I use water instead of coolant to fill the radiator?

A: While water can provide temporary cooling, it is not advisable to use water as a long-term coolant substitute. Coolant is specially formulated to prevent freezing, boiling, and corrosion.

Q3: What causes radiator leaks?

A: Radiator leaks can be caused by corrosion, damaged hoses, or a faulty radiator cap. Promptly addressing any leaks is crucial to prevent engine overheating.

Q4: How can I maintain my car's cooling system?

A: Regular maintenance includes checking coolant levels, inspecting hoses and drive belts for wear, flushing and changing coolant as per the manufacturer's recommendations, and ensuring the radiator is clean and free from debris.

Q5: Can a faulty radiator cause engine damage?

A: Yes, a faulty radiator or cooling system can lead to engine overheating, which can result in severe damage if not addressed promptly. It is essential to promptly attend to any cooling system issues to prevent engine damage.
