Why Your Vehicle's Radiator is Important

Introduction to Radiators

When it comes to vehicle maintenance, the radiator often takes a backseat in people's minds. However, it plays a crucial role in keeping your car running smoothly. The radiator is an integral part of the cooling system, responsible for dissipating heat generated by the engine. Without a properly functioning radiator, your vehicle could suffer from overheating and serious engine damage.

Functions of a Radiator

The primary function of a radiator is to dissipate heat. As the engine runs, it produces a tremendous amount of heat. The coolant, a mixture of water and antifreeze, absorbs this heat and carries it to the radiator. Once there, the heat is transferred to the surrounding air, cooling the coolant before it returns to the engine. This process helps regulate the engine's temperature, preventing it from overheating.

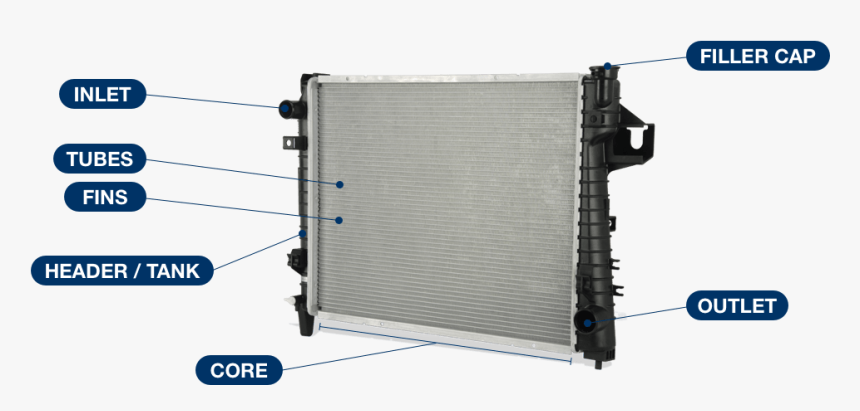

Components of a Radiator

Core: The core of the radiator is typically made of aluminum, copper, or brass tubes that are connected to fins. The core provides a large surface area for heat exchange between the coolant flowing through the tubes and the air passing through the fins.

Tanks: There are two tanks, one on each side of the core, which hold the coolant. The upper tank receives hot coolant from the engine, while the lower tank collects the cooled coolant before it is circulated back to the engine.

Coolant: A mixture of water and antifreeze (ethylene glycol) circulates through the radiator to absorb heat from the engine. The coolant absorbs heat as it passes through the engine and carries it to the radiator, where it releases the heat to the surrounding air.

Radiator Cap: The radiator cap seals the radiator and maintains the pressure in the cooling system. It also allows excess coolant to flow into the overflow reservoir and prevents air from entering the system.

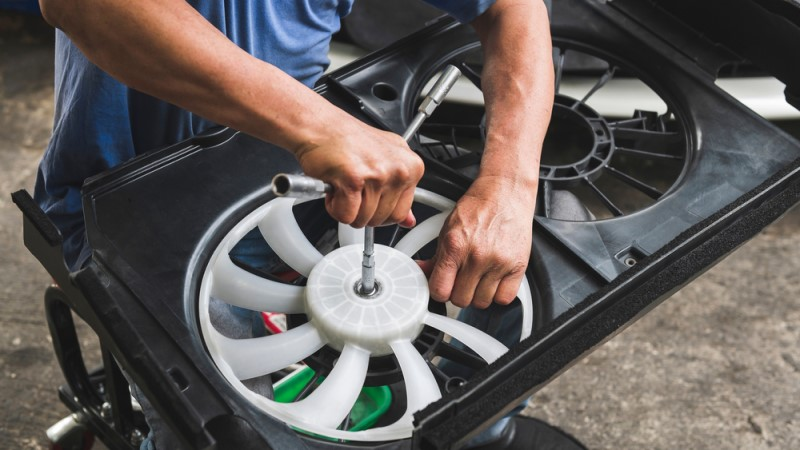

Fan: In many modern cars, an electric fan is mounted behind the radiator to help dissipate heat, especially during idle or low-speed driving when airflow through the radiator is insufficient.

Thermostat: The thermostat is a valve located between the engine and the radiator that regulates the flow of coolant based on the engine temperature. It remains closed when the engine is cold to allow it to reach operating temperature quickly, and then opens to allow coolant to flow through the radiator and cool the engine.

Hoses: Rubber hoses connect the radiator to the engine and the radiator to the coolant reservoir. These hoses allow coolant to flow between the various components of the cooling system.

Pressure Cap: This cap is located on the radiator and maintains a specific pressure within the cooling system. It raises the boiling point of the coolant, preventing it from boiling over under normal operating conditions.

Signs of Radiator Problems

Overheating: One of the most obvious signs is the engine overheating. If the temperature gauge on the dashboard consistently shows higher-than-normal temperatures, it could indicate a problem with the radiator or the cooling system.

Leaking Coolant: Coolant leaks are a clear sign of a radiator problem. Look for puddles of coolant under the vehicle when it's parked, or check for signs of coolant dripping from the radiator or hoses. Coolant leaks can lead to low coolant levels, causing the engine to overheat.

Discolored Coolant: Inspect the coolant in the radiator overflow tank or reservoir. If the coolant appears rusty, cloudy, or has debris floating in it, it may indicate contamination or internal corrosion within the radiator.

Visible Damage: Check the radiator for visible signs of damage such as cracks, holes, or corrosion. Damaged radiators may leak coolant or fail to effectively cool the engine.

Steam or Smoke: If you notice steam or smoke coming from the engine compartment, it could indicate a coolant leak or overheating. Pull over immediately and allow the engine to cool down before investigating further.

Low Coolant Levels: Regularly check the coolant level in the radiator overflow tank or reservoir. A sudden drop in coolant level without any visible leaks may indicate an internal leak within the radiator.

Engine Performance Issues: Radiator problems can affect engine performance. You may notice reduced power, rough idling, or poor fuel efficiency. If the engine is struggling to maintain a consistent temperature, it can lead to performance issues.

AC Not Working: In some cases, a faulty radiator can affect the performance of the air conditioning system. If you notice that the AC is blowing warm air or is less effective than usual, it could be due to overheating caused by radiator problems.

Coolant Odor: A sweet or syrupy smell inside or outside the vehicle may indicate a coolant leak. If you detect this odor, inspect the radiator and cooling system for leaks or other issues.

Importance of Regular Maintenance

Regular maintenance is essential for ensuring your radiator performs optimally. This includes flushing and refilling the coolant according to the manufacturer's recommendations. Inspecting the radiator for leaks or damage, as well as cleaning debris from the fins, can help prevent issues before they arise.

Consequences of Neglecting the Radiator

Neglecting radiator maintenance can have serious consequences for your vehicle. Over time, a poorly maintained radiator can lead to engine damage, resulting in costly repairs or even the need for a replacement engine. By addressing radiator issues promptly and maintaining it regularly, you can avoid these potential pitfalls.

Tips for Radiator Maintenance

To keep your radiator in good condition, follow these tips:

Regularly check coolant levels and top up as needed.

Inspect hoses and connections for signs of wear or leaks.

Address any issues promptly to prevent further damage.

Common Radiator FAQs

1.How often should I flush my radiator?

It's recommended to flush your radiator every two years or as specified in your vehicle's maintenance schedule.

2.Can I use water instead of coolant in my radiator?

While water can be used in an emergency, it's best to use a mixture of water and coolant to prevent freezing and corrosion.

3.What are the causes of radiator leaks?

Radiator leaks can be caused by corrosion, worn hoses, or damage from debris or road hazards.

4.How do I know if my radiator needs repair?

Signs of a faulty radiator include overheating, coolant leaks, and visible damage such as rust or corrosion.

5.Is radiator repair expensive?

The cost of radiator repair can vary depending on the extent of the damage, but addressing issues promptly can help prevent more costly repairs down the line.

Conclusion

In conclusion, your vehicle's radiator plays a critical role in maintaining its performance and longevity. By understanding its importance and taking proactive measures to maintain it, you can avoid costly repairs and keep your car running smoothly for years to come.
