A Master Auto Repairman's Guide: Troubleshooting Car Radiator Fan Failure

Introduction

When you're cruising down the highway on a scorching summer day or stuck in bumper-to-bumper traffic, your car's radiator fan plays a crucial role in preventing your engine from overheating. However, there may come a time when this vital component fails to do its job. In this article, we will delve into the common causes of car radiator fan failure and how you, with a bit of guidance, can troubleshoot and address this issue.

Why is the Radiator Fan Important?

The radiator fan's primary purpose is to dissipate the heat generated by the engine. It ensures that the engine remains at an optimal temperature, preventing it from overheating and potentially causing severe damage.

Types of Radiator Fans

Radiator fans, also known as cooling fans or electric fans, come in several types, each designed for specific applications and vehicle requirements. Understanding the different types can help you make informed decisions when it comes to radiator fan replacement or upgrades. Below are some common types of radiator fans:

Electric Radiator Fans:

Primary Cooling Fans: These are the main fans responsible for cooling the radiator and dissipating heat from the engine. They are typically controlled by the vehicle's engine control unit (ECU) and are activated when additional cooling is needed, such as during heavy traffic or high engine loads.

Auxiliary Cooling Fans: Some vehicles are equipped with an additional electric fan that assists the primary fan during extreme conditions, ensuring optimal cooling performance.

Mechanical (Belt-Driven) Fans:

Mechanical fans are driven by the engine's serpentine belt. They are commonly found in older vehicles and heavy-duty trucks.

Viscous-Coupled Fans: These mechanical fans incorporate a viscous coupling that adjusts the fan's speed based on engine temperature. The coupling contains a heat-sensitive fluid that changes viscosity, allowing the fan to engage or disengage as needed.

Fixed Fans: Some older vehicles feature fixed mechanical fans that operate at a constant speed. These fans are less common today due to their limited adjustability.

Clutch Fans:

Clutch fans are a hybrid between mechanical and electric fans. They feature a clutch mechanism that engages or disengages the fan based on engine temperature. When the engine heats up, the clutch engages, causing the fan to spin faster for increased cooling. Conversely, it disengages when the engine is cooler to save power and reduce noise.

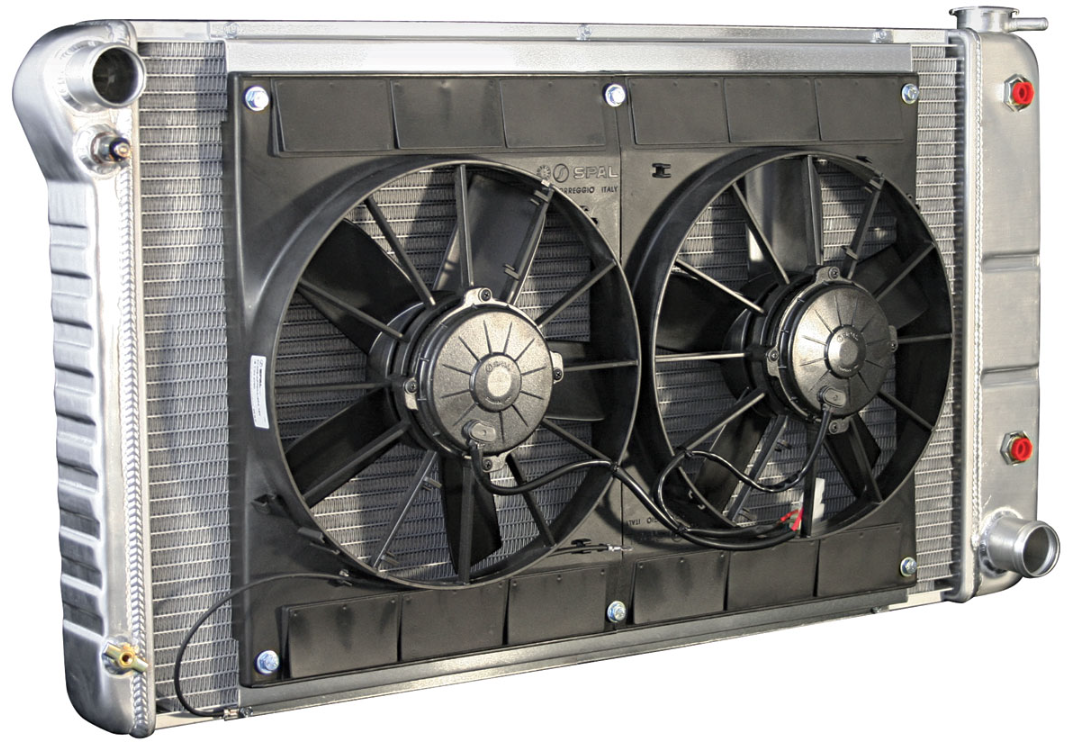

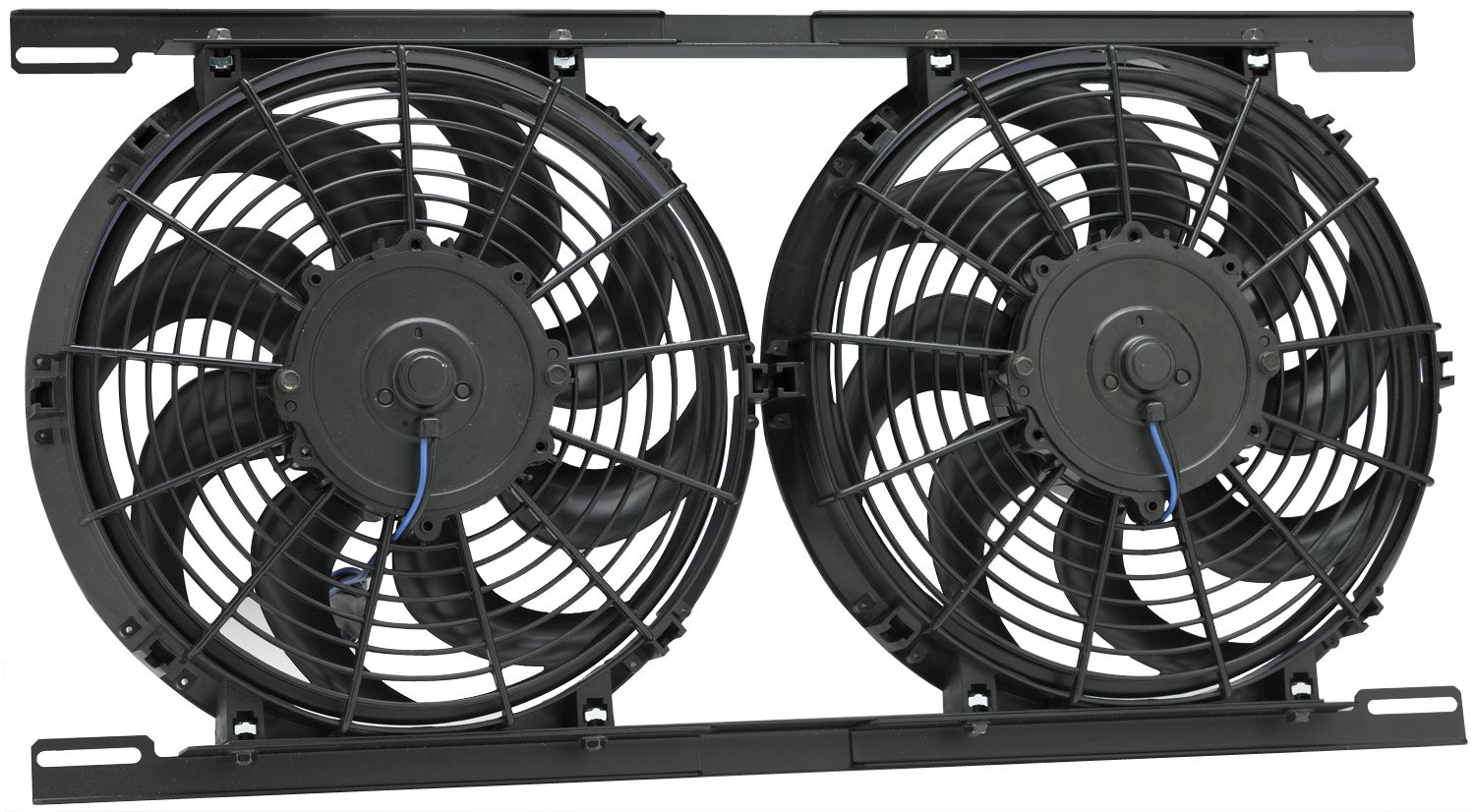

Electric Radiator Fan Assemblies:

In modern vehicles, electric radiator fans are often integrated into a complete fan assembly, including the fan motor, blades, shroud, and sometimes even the fan control module. These assemblies are designed for ease of installation and are a common choice for replacements.

High-Performance Fans:

High-performance radiator fans are designed for vehicles with increased cooling needs, such as high-performance cars, off-road vehicles, or vehicles used for towing. These fans typically have larger blades, more powerful motors, and enhanced cooling capabilities.

Brushless Electric Fans:

Brushless fans are a newer technology known for their efficiency and durability. They use electronic circuitry instead of brushes to control the motor, resulting in longer lifespan and quieter operation.

Pusher vs. Puller Fans:

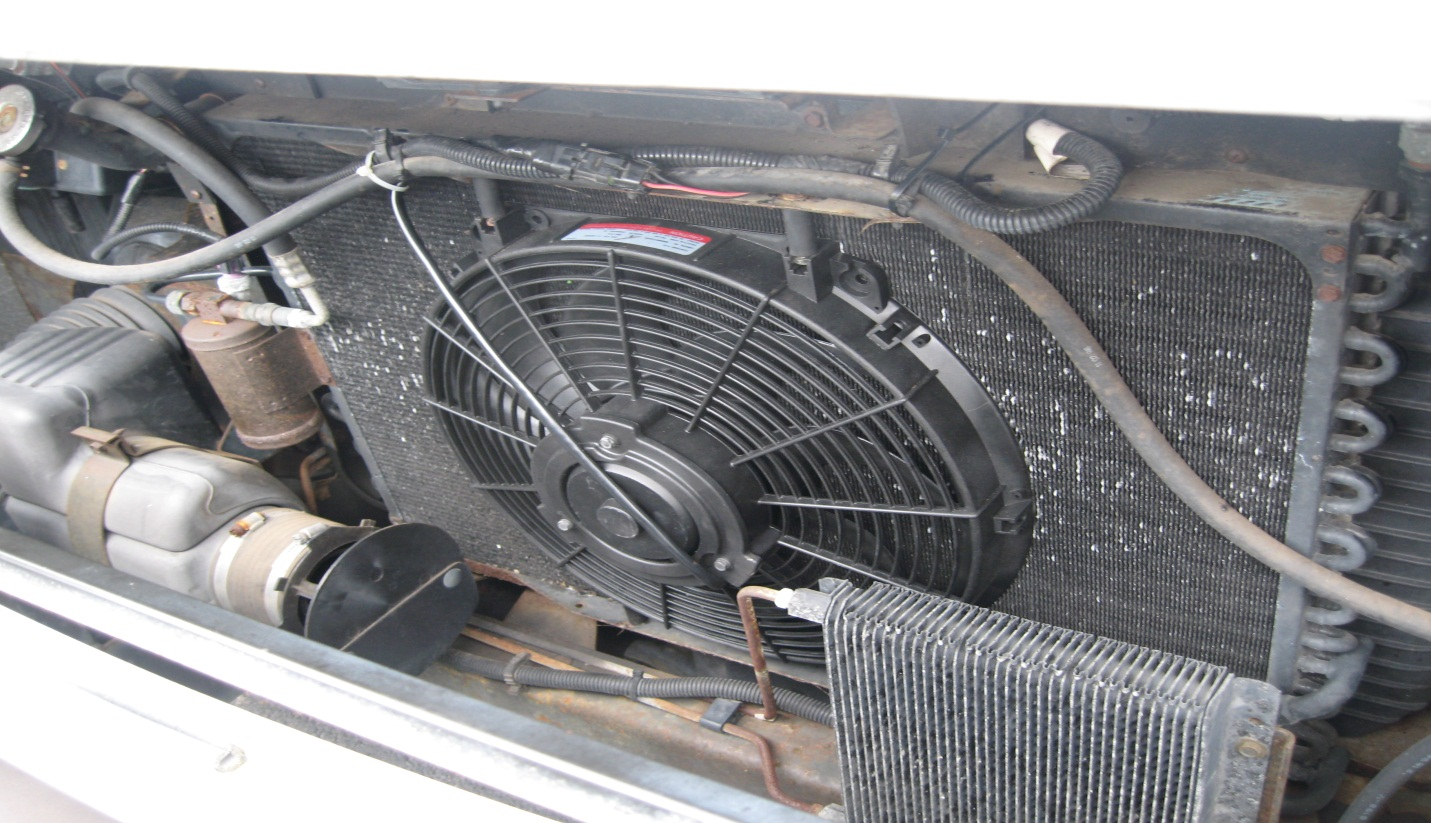

Radiator fans can be installed in two configurations: pusher or puller. Pusher fans are mounted on the front side of the radiator and push air through it. Puller fans are mounted on the engine side of the radiator and pull air through from behind. The choice between pusher and puller fans depends on your vehicle's design and cooling requirements.

Identifying Common Symptoms

Overheating Engine

One of the most evident signs of a radiator fan issue is an overheating engine. If you notice your temperature gauge climbing into the danger zone, it's time to investigate.

AC Problems

Radiator fans often pull double duty by also assisting the air conditioning system. If your AC performance takes a nosedive, it could be related to a failing radiator fan.

Unusual Engine Sounds

Listen carefully for any unusual sounds coming from your engine bay. Grinding, clicking, or squealing noises could indicate problems with the fan.

Troubleshooting Car Radiator Fan Failure

Step 1: Check the Fan Fuse

Locate the Fuse Box: First, find your car's fuse box, typically located under the dashboard or in the engine compartment.

Inspect the Fan Fuse: Look for the fuse related to the radiator fan. If it's blown, replace it with a fuse of the same rating.

Step 2: Examine the Fan Relay

Locate the Fan Relay: The fan relay is usually found in the same vicinity as the fuse box.

Test the Relay: Swap the radiator fan relay with another one with the same part number. If the fan starts working, the relay was the issue.

Step 3: Inspect the Temperature Sensor

Locate the Temperature Sensor: Find the temperature sensor, which triggers the radiator fan to turn on.

Test the Sensor: Use a multimeter to check the sensor's resistance. If it's out of range, replace it.

Step 4: Check the Wiring

Inspect Wiring Connections: Examine the wires connecting the fan, relay, and sensor for any damage or loose connections.

Repair or Replace: If you find damaged wires, repair or replace them accordingly.

Step 5: Examine the Fan Motor

Test the Fan Motor: Disconnect the fan motor and use jumper wires to apply direct power. If it doesn't spin, the fan motor is likely faulty and needs replacement.

Step 6: Verify Coolant Levels

Check Coolant Levels: Ensure your car has the right amount of coolant. Low coolant levels can lead to overheating, even with a functional radiator fan.

Conclusion

Troubleshooting a car radiator fan failure may seem daunting, but with the right guidance, it's manageable. Regular maintenance and quick identification of issues can help you avoid costly repairs and keep your engine running smoothly.

Now that you're armed with knowledge on how to troubleshoot radiator fan problems, you can ensure a cooler, safer ride for yourself and your vehicle.

FAQs

1. Can I continue driving if my radiator fan isn't working?

Driving with a malfunctioning radiator fan is risky, especially in hot weather. It's best to address the issue promptly to avoid engine damage.

2. Are electric radiator fans more prone to failure than mechanical ones?

Electric radiator fans can fail, but they are generally more reliable and efficient than mechanical fans. Regular maintenance is still essential.

3. What should I do if my temperature gauge spikes suddenly?

If your temperature gauge suddenly spikes, pull over safely, turn off the engine, and call for assistance. Continuing to drive can cause severe engine damage.

4. Can I replace a radiator fan myself, or should I consult a professional?

While some DIY enthusiasts can replace a radiator fan, it's recommended to consult a professional for this task to ensure it's done correctly.

5. How often should I check my radiator fan for issues?

Regularly inspect your radiator fan as part of your car's maintenance routine. At least once a year is a good practice, but more frequent checks in hot climates are advisable.
