Understanding How Your Car’s Radiator Works in the Cooling System

Introduction

The radiator plays a vital role in keeping your car's engine cool and preventing overheating. Without a properly functioning radiator and cooling system, the engine could suffer severe damage, leading to costly repairs. But how does a radiator actually work?

In this guide, we’ll explain the radiator’s function, key components, and how it maintains engine temperature, ensuring your vehicle runs smoothly and efficiently.

1. The Purpose of a Radiator in a Car

A car engine generates an enormous amount of heat due to the combustion process and friction between moving parts. If this heat isn’t controlled, it can cause the engine to overheat and fail.

The radiator’s job is to remove excess heat from the engine coolant, which absorbs heat as it circulates through the engine. The cooled-down coolant then returns to the engine to regulate temperature, creating a continuous cooling cycle.

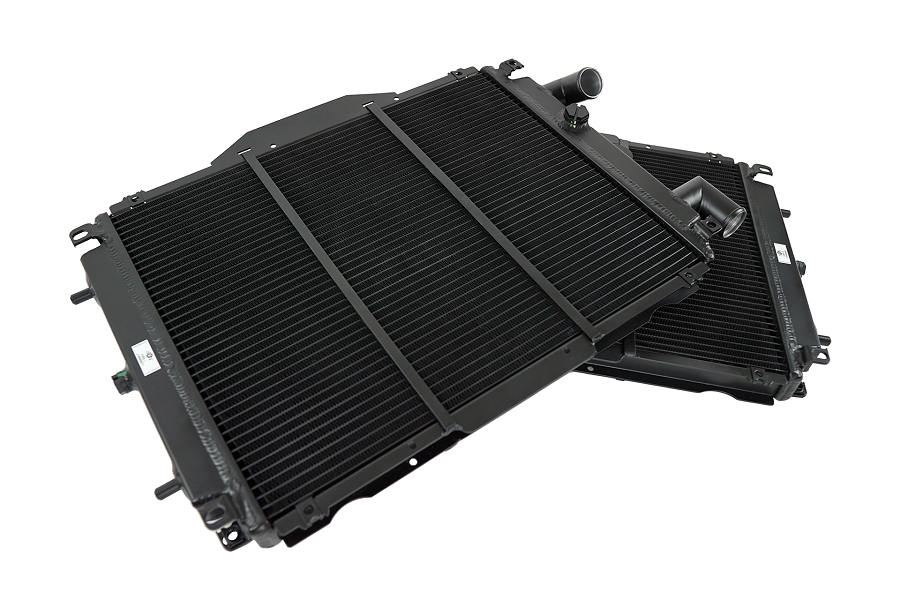

2. Key Components of a Radiator

A radiator consists of several critical parts that work together to dissipate heat efficiently:

1) Core

The core is the main body of the radiator, made up of thin tubes and cooling fins that help transfer heat from the coolant to the surrounding air.

2) Tanks

Radiators have two tanks (inlet and outlet), which store coolant before and after it passes through the core.

3) Cooling Fins

The metal fins increase surface area for better heat dissipation. These fins allow air to pass through the radiator, removing heat from the coolant.

4) Radiator Cap

The radiator cap maintains the proper pressure level in the cooling system, preventing boiling or coolant loss.

5) Thermostat

The thermostat controls when coolant circulates through the radiator. It remains closed when the engine is cold and opens when the engine reaches optimal operating temperature.

6) Water Pump

The water pump moves coolant through the engine block, radiator, and hoses, ensuring proper circulation.

3. How Does the Radiator Work?

The radiator operates through a closed-loop system that cycles coolant between the engine and radiator to manage temperature. Here’s how the process works:

Step 1: Coolant Absorbs Heat from the Engine

As the engine runs, the coolant (a mix of water and antifreeze) absorbs heat from the engine block and cylinder head.

Step 2: Hot Coolant Travels to the Radiator

The heated coolant moves through hoses to the radiator.

Step 3: Heat Dissipation

The radiator’s tubes and cooling fins transfer heat from the coolant to the air.

The radiator fan assists in cooling when the vehicle isn’t moving fast enough.

Step 4: Cooled Coolant Returns to the Engine

Once the coolant cools down, it flows back into the engine to repeat the cycle.

Step 5: Thermostat Regulation

The thermostat opens and closes to maintain the ideal operating temperature for engine performance.

4. Why Is the Radiator Essential for Your Car?

Without an efficient radiator, your car’s engine would quickly overheat, leading to:

✅ Engine damage due to excessive heat.
✅ Loss of lubrication, increasing wear on internal parts.
✅ Warped cylinder heads and potential head gasket failure.
✅ Coolant boiling over, leading to system failure.

A well-maintained radiator ensures efficient heat regulation, keeping the engine at optimal temperature and improving fuel efficiency and longevity.

5. Common Radiator Problems and How to Fix Them

1) Leaking Coolant

Cause: Cracked hoses, loose clamps, or corroded radiator.

Fix: Inspect for leaks, replace damaged parts, and top up coolant.

2) Overheating Engine

Cause: Low coolant levels, faulty thermostat, or clogged radiator.

Fix: Check coolant levels, flush the radiator, and replace malfunctioning parts.

3) Rust or Corrosion

Cause: Old coolant or lack of maintenance.

Fix: Flush the cooling system and use a corrosion inhibitor.

4) Clogged Radiator

Cause: Dirt, debris, or old coolant buildup.

Fix: Perform a radiator flush and clean the fins.

5) Faulty Radiator Fan

Cause: Blown fuse, wiring issue, or broken motor.

Fix: Replace the fuse, repair wiring, or install a new fan.

6. Radiator Maintenance Tips for Longevity

To keep your radiator in top shape, follow these maintenance tips:

✔Check Coolant Levels Regularly – Ensure the coolant is always at the proper level.
✔Flush the Radiator Periodically – Change coolant every 30,000–50,000 miles to remove debris and prevent blockages.
✔Inspect Hoses for Cracks – Replace worn-out hoses to prevent leaks.
✔Clean Radiator Fins – Remove dirt and debris for better airflow.
✔Test the Thermostat – Ensure it opens and closes correctly to regulate coolant flow.
✔Check for Rust or Corrosion – Use the right coolant mixture to prevent metal degradation.

Conclusion

Your car’s radiator is a crucial component of the cooling system, ensuring the engine maintains optimal temperature and avoids overheating. Understanding how it works, common problems, and maintenance tips will help you keep your vehicle running smoothly and efficiently.

Regular radiator maintenance not only prevents costly repairs but also extends your car’s lifespan. Keep an eye on coolant levels, radiator condition, and overall system performance to ensure a trouble-free driving experience.

FAQs

1. How often should I flush my radiator?

It’s recommended to flush your radiator every 30,000–50,000 miles or as specified in your owner’s manual.

2. What type of coolant should I use for my car?

Always use the manufacturer-recommended coolant (either ethylene glycol or propylene glycol-based). Mixing different types can cause engine damage.

3. How do I know if my radiator is clogged?

Signs of a clogged radiator include engine overheating, reduced coolant flow, or visible debris in the coolant. A radiator flush can help clear blockages.

4. Can I drive with a leaking radiator?

No. Driving with a coolant leak can lead to engine overheating and severe damage. Always fix leaks immediately.

5. What causes radiator hoses to collapse?

A collapsed hose can be caused by a faulty radiator cap, vacuum pressure, or a clogged cooling system. Replacing the affected hose and checking pressure levels can resolve this issue.
