5 Different Types of Vehicle Radiators

Vehicle radiators are essential components of a car’s cooling system, designed to keep the engine from overheating by dissipating heat. There are several types of radiators available, each with distinct features that make them suitable for various types of vehicles and driving conditions. Understanding the differences between these radiators can help you make an informed decision about which one is best suited for your car, truck, or other vehicle. Below are the five most common types of vehicle radiators:

1. Crossflow Radiators

Crossflow radiators are one of the most common radiator designs, especially in modern vehicles. They are named for their unique design, where the coolant flows horizontally (across) through the radiator.

Design and Function: In a crossflow radiator, the coolant enters one side of the radiator and flows horizontally through the core before exiting on the other side. This type of radiator uses a flat design with a series of cooling tubes arranged horizontally.

Advantages:

o Efficient Cooling: The horizontal design allows for greater surface area for heat exchange, which improves heat dissipation.

o Compact and Lightweight: Crossflow radiators tend to be compact and lightweight, making them a good choice for modern vehicles where space and weight are limited.

Applications: Crossflow radiators are commonly found in modern cars, trucks, and motorcycles, and they are the most widely used type in passenger vehicles.

2. Downflow Radiators

Downflow radiators are the traditional design used in many older vehicles. In this system, the coolant flows vertically from the top to the bottom of the radiator.

Design and Function: The coolant enters the top tank of the radiator, flows down through the core, and exits at the bottom. This vertical flow design relies on gravity to assist the cooling process, allowing hot coolant to move downward while the cold coolant rises.

Advantages:

o Effective for Older Vehicles: Downflow radiators are still widely used in older or classic cars, especially trucks, because they offer efficient cooling for high-power engines.

o Simple Design: The design is straightforward, which makes it easier to repair and maintain.

Applications: Downflow radiators are commonly found in classic cars, trucks, and agricultural vehicles. They are also used in heavy-duty applications like construction machinery.

3. Dual Pass Radiators

Dual pass radiators are designed to improve cooling efficiency by allowing the coolant to flow through the radiator twice before exiting, enhancing the heat dissipation process.

Design and Function: In this type of radiator, the coolant passes through two sections of the radiator core. The coolant flows in one direction initially, then reverses and passes through the second set of tubes before exiting the radiator. This dual flow ensures that the coolant spends more time in contact with the cooling fins, improving heat transfer.

Advantages:

o Enhanced Cooling Efficiency: The dual-pass design ensures more thorough cooling of the coolant, especially in high-performance or heavy-duty applications.

o Better Heat Dissipation: More surface area for heat transfer means better temperature regulation for engines under load.

Applications: Dual pass radiators are often found in performance vehicles, off-road vehicles, and some trucks. They are also used in applications where engines operate under heavy loads or high stress.

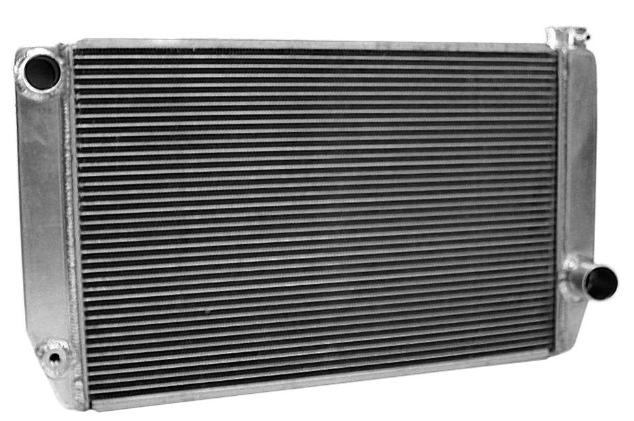

4. Aluminum Radiators

Aluminum radiators have become the industry standard due to their high performance, lightweight design, and resistance to corrosion. They are used in a wide variety of modern vehicles.

Design and Function: Aluminum radiators typically feature an aluminum core with plastic or aluminum end tanks. The aluminum core has excellent heat transfer properties, ensuring that the coolant is efficiently cooled.

Advantages:

o Lightweight and Durable: Aluminum is significantly lighter than traditional copper/brass radiators, making it ideal for performance vehicles and those looking to reduce vehicle weight.

o Corrosion Resistance: Aluminum radiators are resistant to corrosion and rust, offering better durability in various weather conditions.

Applications: Aluminum radiators are commonly used in modern passenger vehicles, trucks, sports cars, and motorcycles. They are also standard in many racing applications.

5. Plastic Radiators

Plastic radiators are a more affordable and lightweight alternative to traditional aluminum or copper/brass radiators. They combine aluminum cooling cores with plastic end tanks to create a more cost-effective solution.

Design and Function: Plastic radiators usually have an aluminum core that provides the cooling, with plastic tanks used to house the coolant. The plastic end tanks are molded to fit the radiator design and can be produced quickly at a lower cost.

Advantages:

o Cost-Effective: Plastic radiators are less expensive to produce compared to aluminum or copper/brass radiators.

o Lightweight: Like aluminum radiators, plastic radiators are lightweight and help improve fuel efficiency.

o Easy to Manufacture: Plastic end tanks allow for faster manufacturing times and lower production costs.

Applications: Plastic radiators are commonly found in economy cars and modern vehicles, where cost savings are a priority without compromising cooling efficiency.

Conclusion

Choosing the right radiator for your vehicle depends on several factors, including the type of vehicle, its intended use, and the level of performance required. Whether you opt for the efficient heat dissipation of a crossflow radiator, the traditional design of a downflow radiator, the enhanced performance of a dual pass radiator, or the lightweight benefits of aluminum and plastic radiators, each type offers distinct advantages tailored to specific needs. Understanding the different types of radiators can help ensure that your engine stays cool, operates efficiently, and performs optimally.

FAQs

1.What is the difference between a crossflow and a downflow radiator?

Crossflow radiators have coolant flowing horizontally, while downflow radiators have coolant flowing vertically. Crossflow radiators are more common in modern vehicles.

2.Why are aluminum radiators so popular?

Aluminum radiators are lightweight, durable, and resistant to corrosion, making them ideal for most modern vehicles, including performance cars.

3.What is a dual pass radiator used for?

Dual pass radiators improve cooling efficiency by allowing coolant to pass through the radiator twice, enhancing heat dissipation for high-performance or heavy-duty vehicles.

4.Are plastic radiators as durable as aluminum ones?

Plastic radiators are cost-effective and lightweight but may not offer the same long-term durability as aluminum or copper/brass radiators, especially in extreme conditions.

5.Which radiator type is best for heavy-duty vehicles?

Downflow or dual pass radiators are ideal for heavy-duty vehicles, as they provide more efficient cooling and can withstand high-power engines and tough environments.
